SPECIFICATIONS

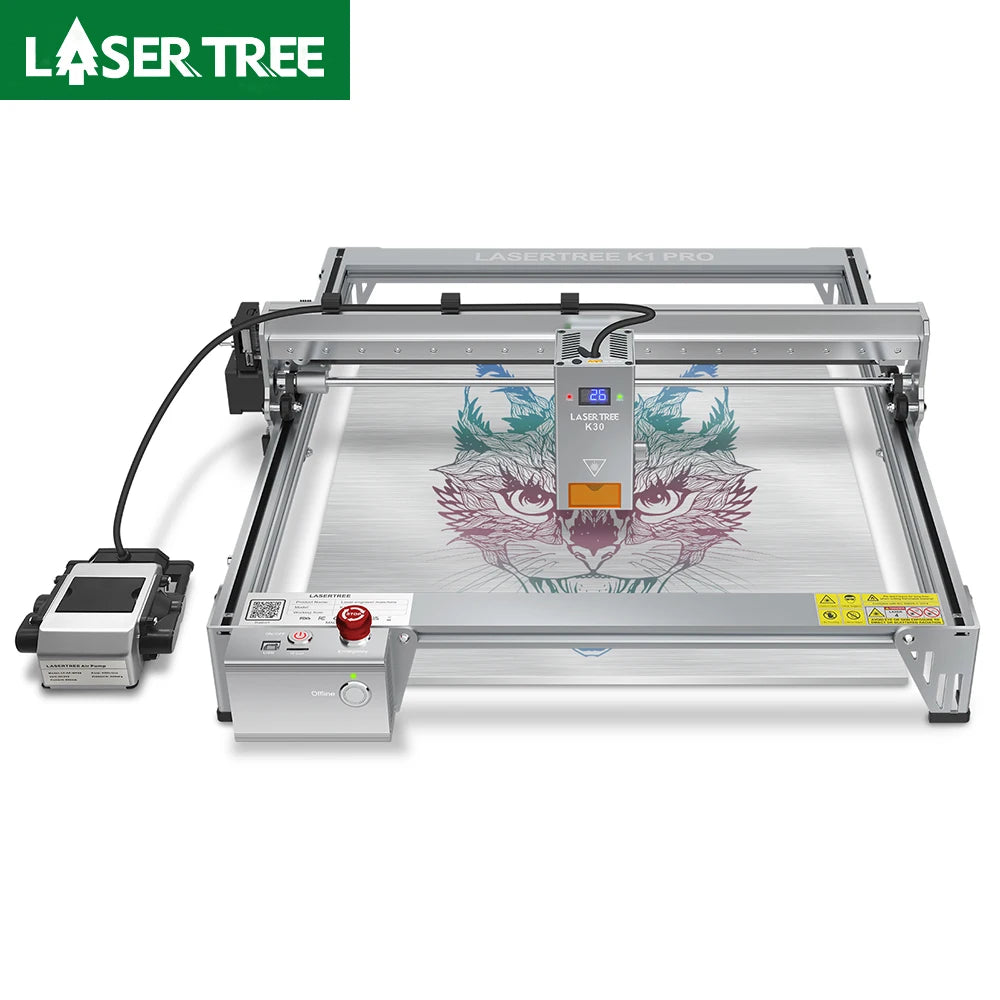

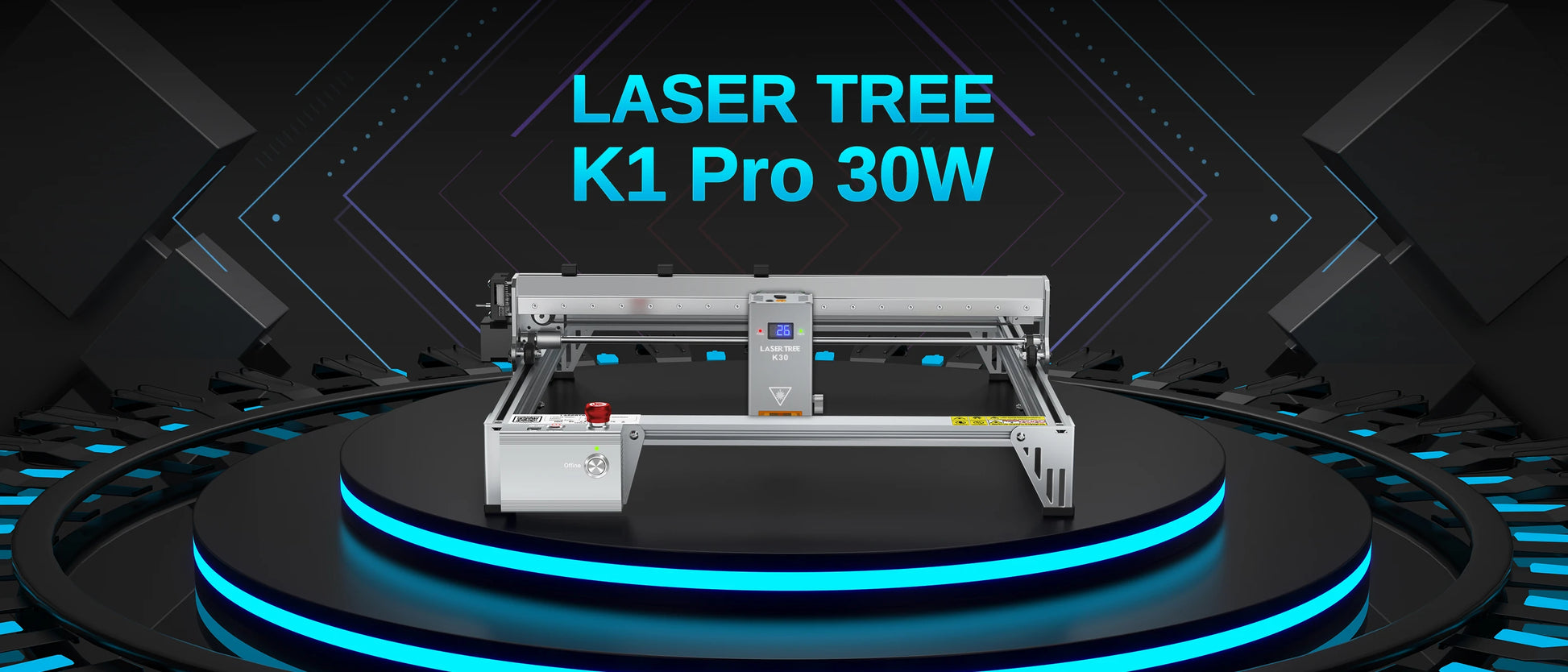

LASER TREE K1PRO Laser Engraver 30W 40W Laser Engraving Cutting Machine CNC Woodworking DIY Tools Engraving Area 400X400mm



Laser Engraving Machine--LT-K1-PRO-(30W or 40W) /-LT-K1-PRO-(30W or 40W)-KIT

Laser Tree K1 PRO offers you a full set of accessories - laser engraving machine + 30W laser head

(KIT: + air pump + working plate)

(KITB: + air pump + Honeycomb panel)

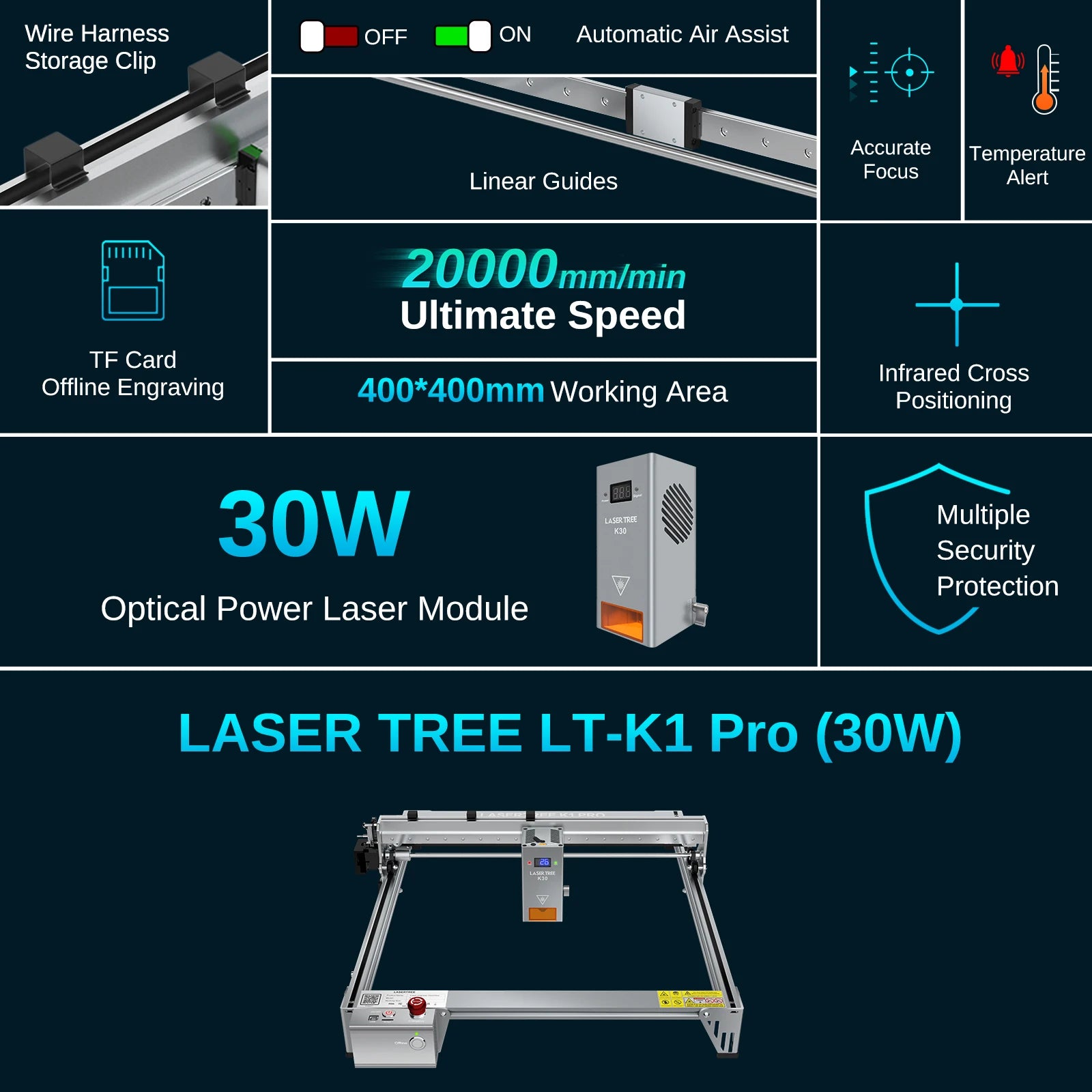

Laser Engraving Machine Features:

① With Wire Harness Storage Clip

② TF Card Ofline Engraving

③ Working Area 400*400mm

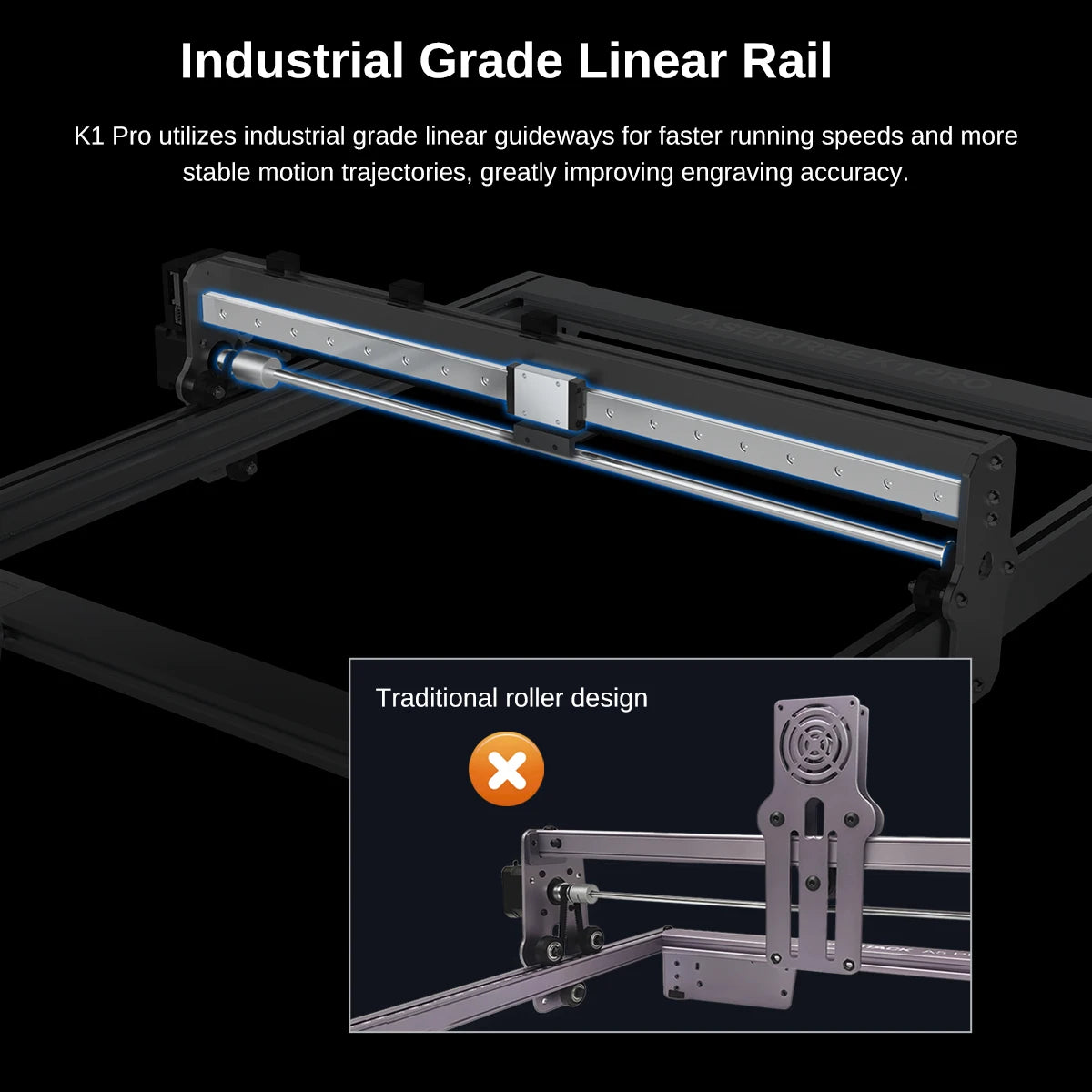

④ Industrial Grade Linear Rail

⑤ With 30W Optical Power Laser Module

LT-K30 Optical Power 30W+ Laser Module.

Built-in 6pcs 5.5W+ beam compressed laser diodes, which can provide up to 30W+ optical power to achieve fast and efficient cutting.

Powerful Cutting Ability.

12mm basswood plywood：130mm/min ；1pass

20mm pine plywood : 95mm/min; 1pass

20mm black acrylic : 25mm/min; 1pass

Upgraded Automatic Air Assist System:

The K1 PRO series is equipped with an air pump with low noise and air flow ≥26L/min, and can intelligently control the air assist switch through LightBurn software.

When cutting with this laser head, turning on the air assist system will blow air through the air nozzles. This will give you excellent cutting results.

When engraving with this laser head, turning off the air assist system.

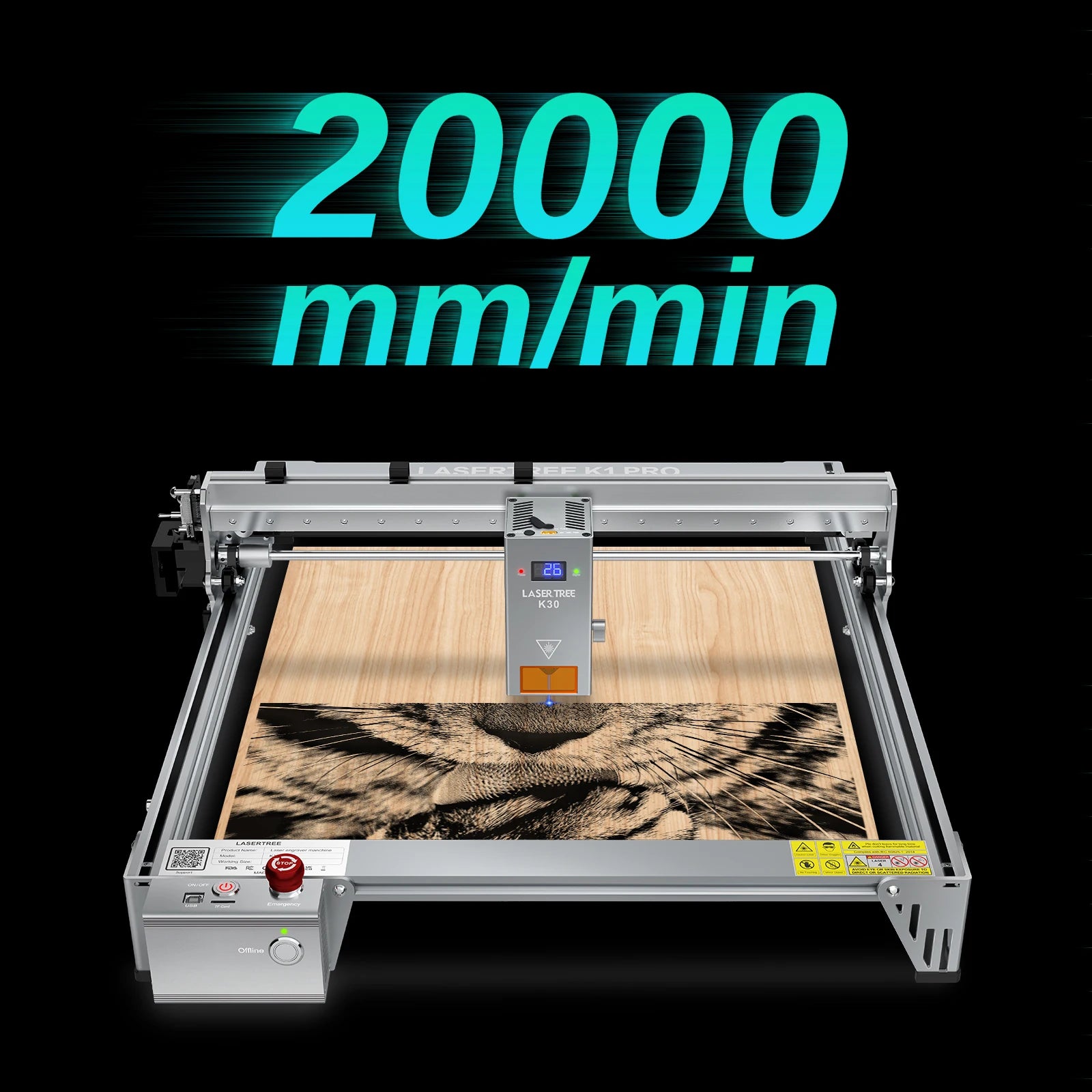

Ultimate Engraving Speed--20000mm/min

3 times engraving speed compare with 10W laser power module.

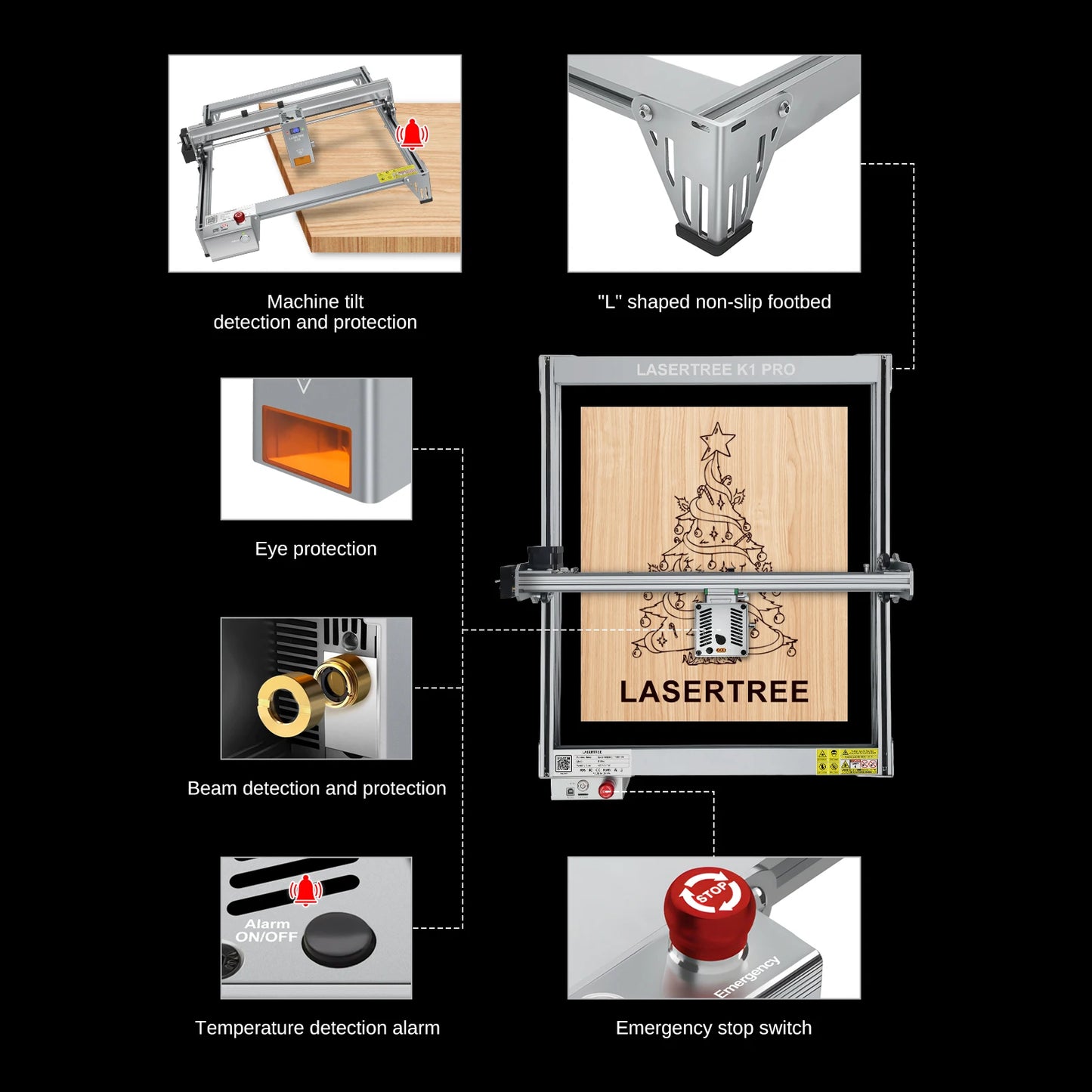

Machine Tilt Detection and Protection

When the engraving machine tilts while working, the power will automatically cut off; in emergency situations, you can press the emergency stop button.

"L" Shaped Non-slip Footbed

It provides protection pad to keep the engraver stable while working.

LT-K30 Laser Head Features

① Alarm Function:When an over-temperature alarm occurs, press once can turn off the buzzer alarm sound. When the working temperature of the laser module is higher than 55'C, the buzzer will sound an alarm. To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.

② Laser View Window: Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

③ Copper Core Protection Lens: Easy to clean and replace when the lens is contaminated or dusty.

④Red cross line locating:The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

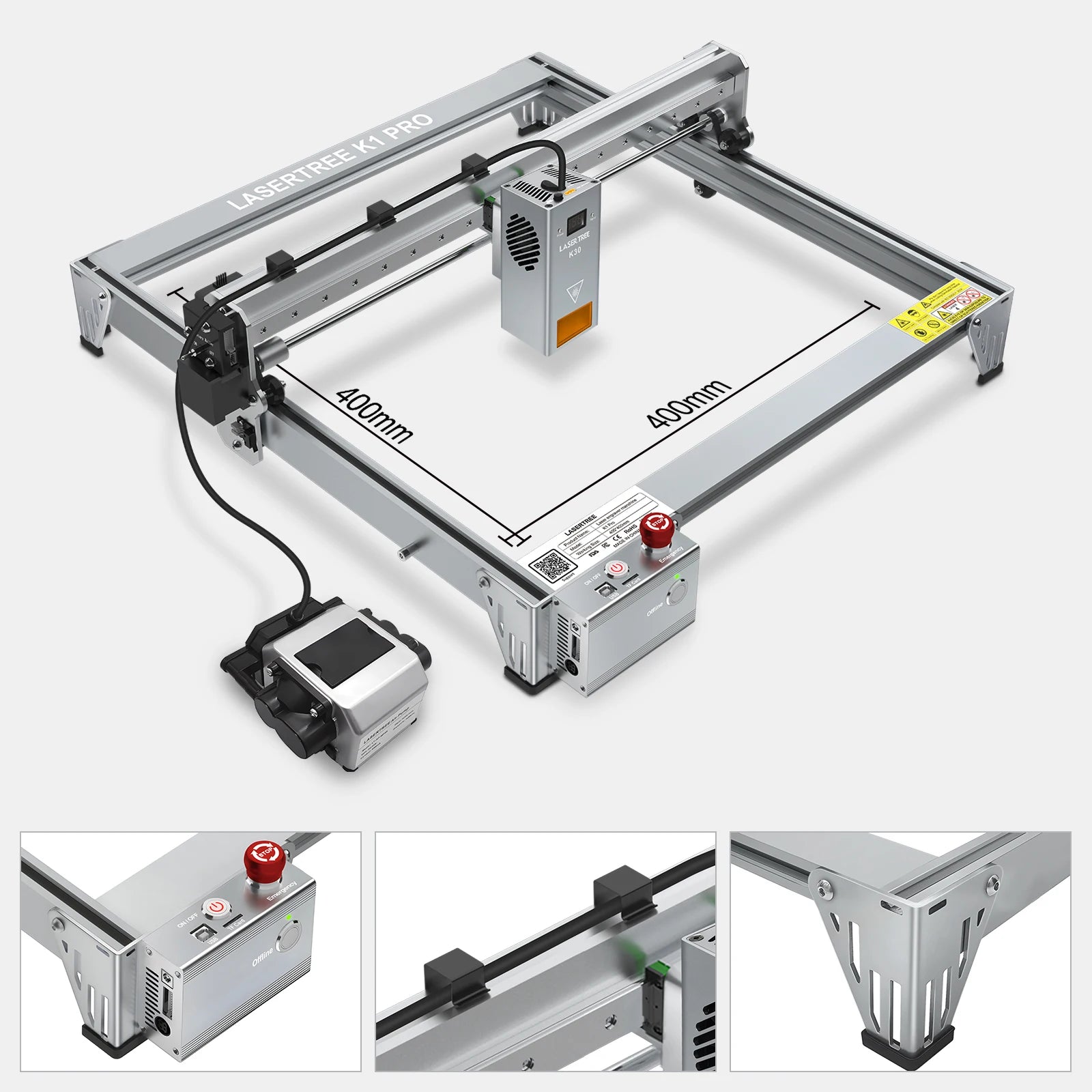

Working Area 400x400mm

Unlimited Creativity With Extensive Compatibillity

Software: LightBurn, LaserGRBL

Operating System: Mac OS/Windows

LT-K1-PRO-30W Packing List

Laser engraving machine + 30W laser head

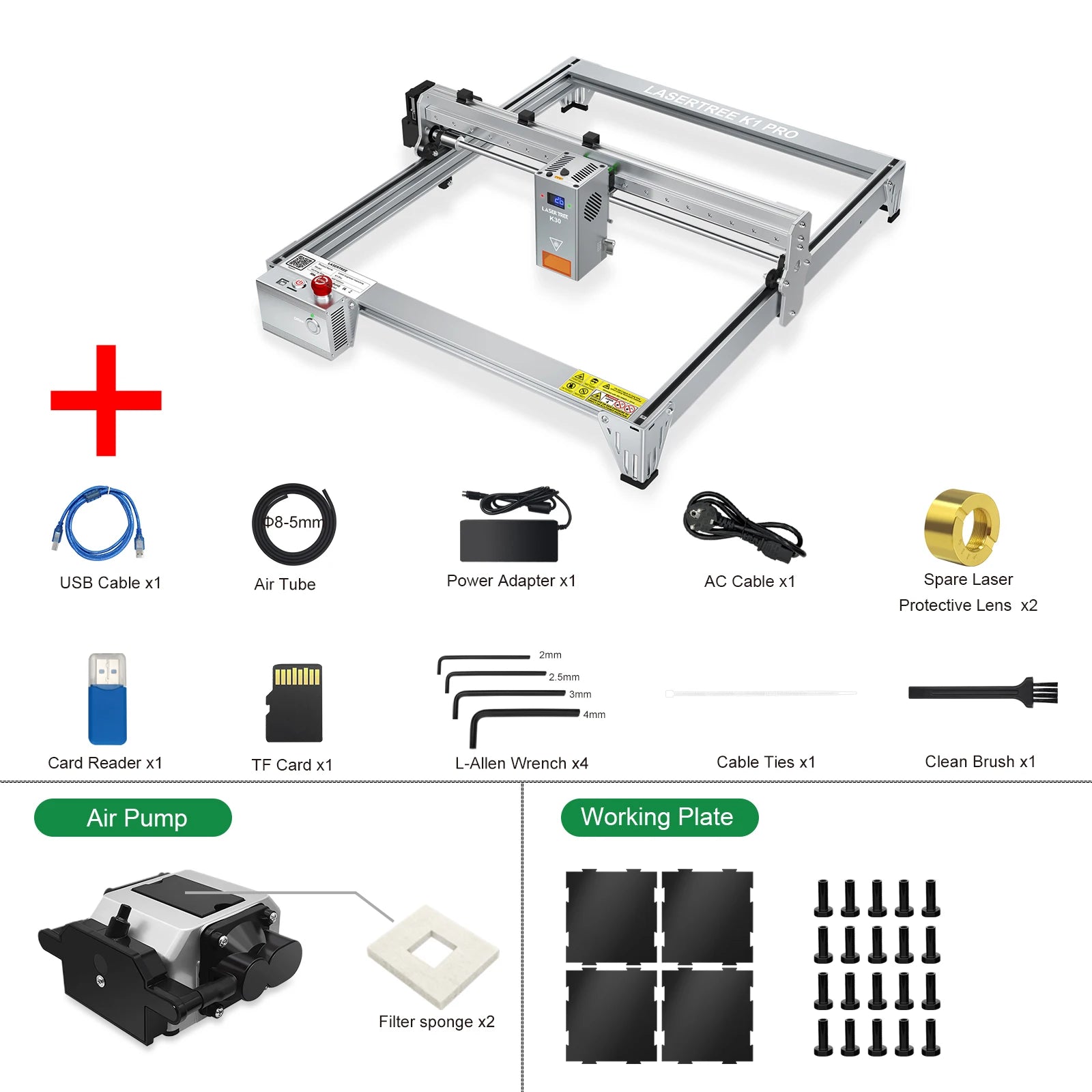

LT-K1-PRO-30W-KIT Packing List

Laser engraving machine + 30W laser head + air pump + working plate
