SPECIFICATIONS

Product Specifications

MCU: ESP32 series of SoCs embedded, Xtensa® dual-core 32-bit LX6 microprocessor

• Wireless features: Wi-Fi 802.11 b/g/n, BL V4.2+BLE

• Programming Platforms: Arduino-ide, Micropython

• Clock Frequency: Main Frequency up to 240MHz

• Flash: 4MB

• Onboard Functions: Button: Boot + Resrt, Support: TF card, USB/3.7V Lipo battery power supply, battery switch

LoRa Module: SX1278 / SX1276 Long-range, low-power and secure data transfer

• Low RX Current: 9.9mA

• SX1278 Frequency Band: 433MHz

• SX1276 Frequency Band: 868MHz / 915MHz / 923MHz

0.96inch SSD1306 Driver I2C OLED

• Resolution: 128*64px

• I2C Interface: SDA--IO21  SCL--IO22

Firmware

ESP32-Paxcounter_Github

LoRa32_GitHub

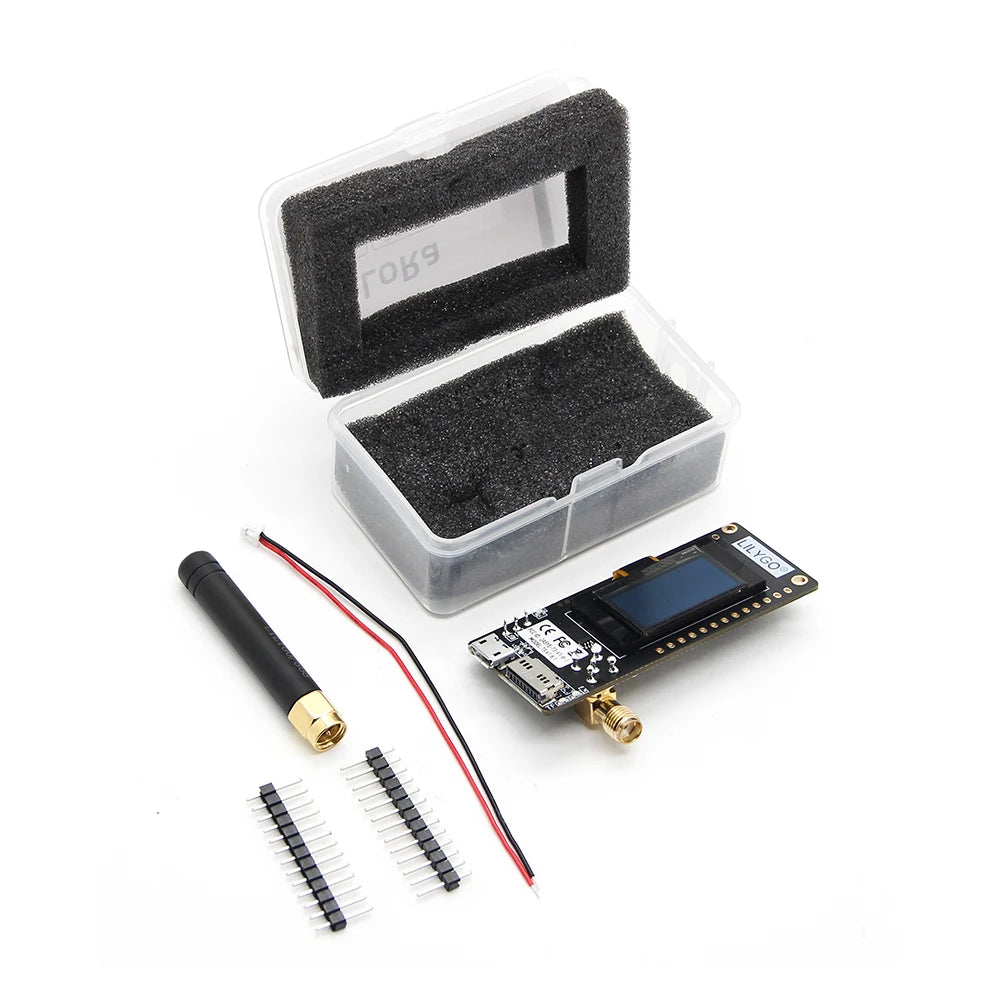

Shipping List

1 X LoRa32 Modules

1 X Power Cable (Jst 2pin 1.25mm)

1 X LoRa Antenna

2 X Pin

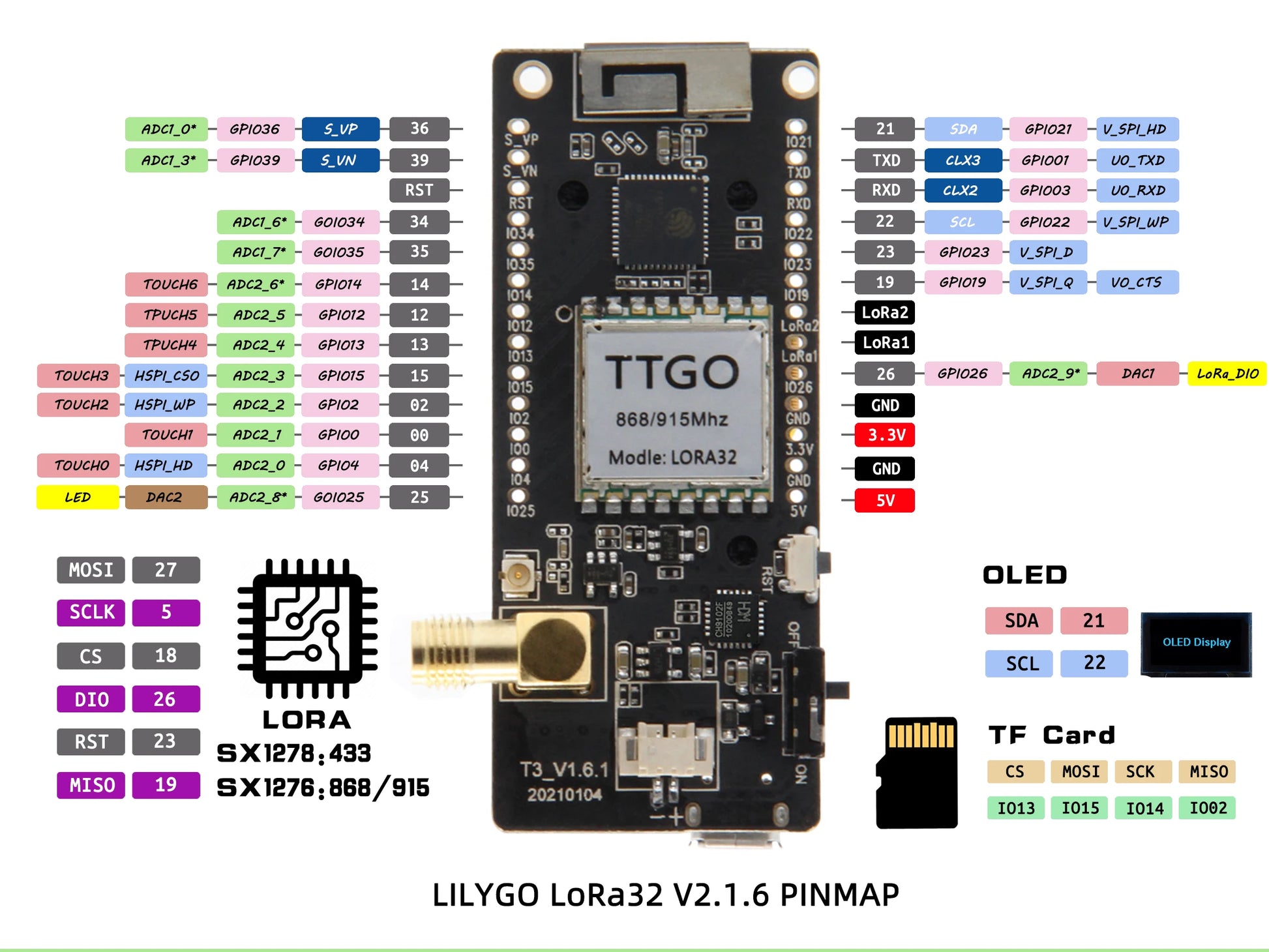

PIN MAP
